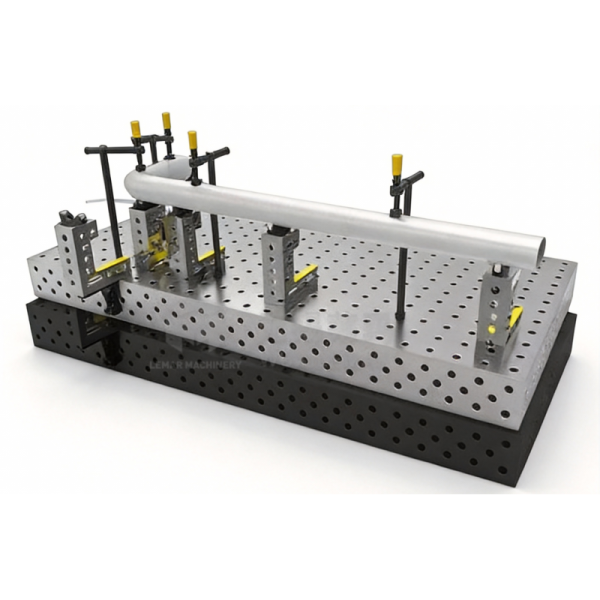

D16 Welding Table Heavy Duty Steel Frame Featuring Heat Resistant Surface and Adjustable Clamps

D16 Welding Table Heavy Duty Steel Frame Featuring Heat Resistant Surface and Adjustable Clamps is a three-dimensional modular flexible fixturing platform. The core designation "D16" represents the industry-standard hole diameter of 16mm and hole spacing of 50mm x 50mm. It is suitable for welding, assembly, and inspection of metal structural components and is widely used in industrial applications such as machinery manufacturing, automotive modification, and construction machinery. Its core advantages lie in its modular design and high repetitive positioning accuracy.

• Three-dimensional hole pattern design: Standard D16 holes are evenly distributed on all five working surfaces, allowing for the installation of locating pins, clamps, support blocks, and other accessories at any position. This enables three-dimensional workpiece clamping and is suitable for multi-sided welding of complex structural parts.
• Modular and flexible design: The platform can be assembled and expanded, and clamping accessories (such as D16 locating angle rulers, quick clamps, and support columns) can be freely combined, adapting to small-batch, multi-variety production and reducing the cost of dedicated fixtures.
• High strength and stability: The material has high hardness after heat treatment, and the reinforced rib design at the bottom disperses stress, preventing workpiece deformation during welding and ensuring welding accuracy.
• Strong compatibility: Compatible with mainstream welding processes such as MIG/TIG/arc welding, and compatible with automated equipment such as robotic welding and CNC cutting. It also supports use with welding positioners, rotary tables, and other related equipment.

• Positioning: D16 locating pins (M8/M10), right-angle rulers, V-blocks, stop blocks for quick workpiece positioning.
• Clamping: Quick-release clamps, pneumatic/hydraulic clamps, chain clamps to adapt to different workpiece shapes and clamping force requirements.
• Supporting: Adjustable support columns, height blocks, rotary tables for multi-position and angled welding.

• Automation Adaptation: Robot connection flanges, positioner interfaces to support automated welding integration.
• Inspection: Dial indicator holders, laser positioners to improve assembly and inspection accuracy.
• Protection: Splash guards, high-temperature resistant pads to protect the work surface and hole system.

• Compatible with third-party accessories conforming to the D16 standard (such as Siegmund, SOMET, etc.), ensuring strong interchangeability.
• Can be used with D28 hole system platforms via adapters, allowing for the combination of different platform sizes.

• Selection based on workpiece:
  • Small sheet metal parts (≤50kg): 1000×1500mm, Q555 steel plate tabletop, with lightweight clamps.
  • Medium-sized structural parts (50-500kg): 1200×2000mm, ductile iron tabletop, with support columns.
  • Heavy workpieces (≥500kg): 1500×3000mm, thickened cast iron tabletop, with hydraulic clamps.
• Selection based on process:
  • TIG/MIG welding: High flatness (≤0.05mm/m²) + magnetic fixtures, suitable for precision welding of thin plates.
  • Robotic welding: CNC machined tabletop + positioning pins, repetitive positioning accuracy ±0.05mm, suitable for automated processes.
  • Multi-station welding: Choose models with rotary table/positioner interfaces to improve welding efficiency.

• Warranty Policy
  • Standard Warranty: 12 months or 2000 working hours (whichever comes first), covering quality issues such as table deformation and hole wear.
  • Extended Warranty Service: Optional 1-5 year extended warranty, providing on-site repair and parts replacement services.
• Technical Support
  • 24/7 online consultation, providing installation videos, operation manuals, and precision calibration guidance.
  • Overseas agents provide localized services, such as on-site commissioning and personnel training.

Elevate Your Fabrication Precision with D16As a 16-year expert in welding table manufacturing, LEMAR’s D16 3D Metal Work Fixture Table delivers unrivaled flexibility and accuracy. Its 16mm standard hole system, modular design, and 66 HRC hardened surface ensure seamless adaptation to your diverse production needs—from small-batch customization to heavy-duty fabrication. Trust in our quality, and let’s build more efficient welding solutions together.
