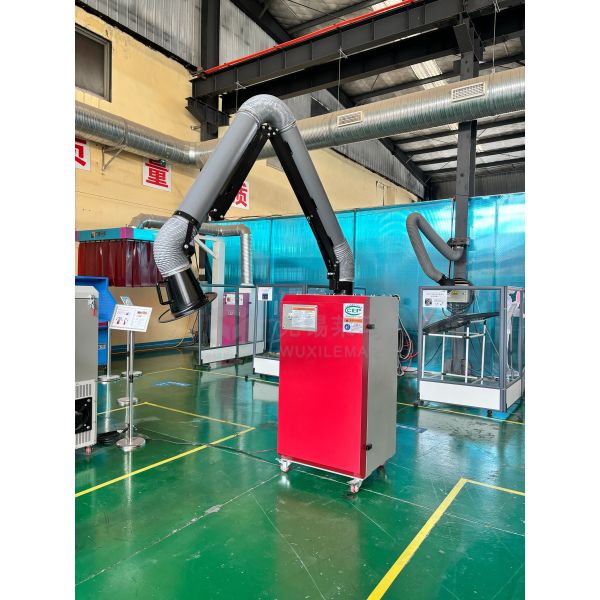

Industrial Welding Fume Exhaust Extraction System Collector Extractor

Name: Industrial Welding Fume Exhaust Extraction System Collector Extractor
Brand: LEMAR
Price: 100 USD

Buy cheap Industrial Welding Fume Exhaust Extraction System Collector Extractor product

Place of Origin : WUXI

Packaging Details : 3000*2000*300mm

Inlet temperature : ≤80℃

Delivery Time : 15-25 work days

Supply Ability : 500 units/month

Operation mode : Supply air on demand to reduce air consumption.

Filter efficiency : ≥99.9% @ 0.3μm

Model Number : LW-C-M1201-030A2

Brand Name : LEMAR

Certification : CE

Price : 100-500 USD

Energy saving rate : 30%–50%

Speed control : Variable frequency VFD/EC fan

Payment Terms : ,L/C,D/A,D/P,T/T,

Protection level : IP54

Wheel : Braked swivel wheels

MOQ : 1

Structure : Mobile / Fixed

Braked swivel wheels : PTFE-coated polyester filter cartridge

Contact Now

Industrial Welding Fume Collector with Energy-Saving Features

The Industrial Welding Fume Collector with Energy-Saving Features is a highly efficient and environmentally friendly device designed specifically for metal processing scenarios such as welding, cutting, and grinding. Its core function is to capture welding fumes and harmful particles from the source or workshop environment, and then filter and purify them through multiple stages to meet emission standards. At the same time, it adopts energy-saving technologies such as intelligent speed regulation and on-demand operation, which significantly reduces the power consumption of the fan and the operation and maintenance costs, helping enterprises meet environmental compliance and achieve cost reduction and efficiency improvement.

Air flow	1500-3000 m³/h
Fan power	0.75-2.2 kW (Variable Frequency Energy Saving)
Working voltage	380V/3P/50Hz
Noise level	≤68-72 dB (A)
Filter area	10-15 ㎡
Inlet temperature	≤80℃
Suction arm	360° omnidirectional flexible suction arm
Suction arm length	2m / 3m (optional)

Industrial Welding Fume Exhaust Extraction System Collector Extractor

Structural and Exterior Design

Constructed from thickened cold-rolled steel plate for sturdiness and durability
Surface electrostatically powder-coated for rust resistance, corrosion resistance, and easy cleaning
Equipped with omnidirectional silent casters with brakes for flexible movement and quick workstation switching
360° flexible suction arm can be positioned anywhere for precise smoke and dust source targeting
Compact design with small footprint suitable for various workshop layouts

Safety Performance

Built-in spark catcher effectively intercepts welding sparks, preventing filter cartridge ignition
Anti-static filter cartridge prevents static electricity from dust friction, meeting industrial safety standards
Motor has IP54 protection rating for dustproof and waterproof operation in harsh workshop environments
Overload protection, overcurrent protection, and phase loss protection ensure stable and reliable operation

Overall Advantages

Compliance and Standards

Emission concentrations typically <0.5mg/m³, meeting domestic and international standards such as GB 16297 and ISO 21904, facilitating environmental impact assessment acceptance.

Significant Cost Reduction

Annual energy savings of 8000-12000kWh, extended filter media lifespan to 6000-8000 hours, and reduced operation and maintenance costs by 40%-60%.

Safety and Reliability

Standard configuration includes anti-static filter cartridges, explosion-proof motors, and high-temperature resistant bodies, capable of withstanding high-temperature dust exceeding 200℃, suitable for 24-hour continuous operation.

Intelligent Operation and Maintenance

Supports local PLC control, IoT remote monitoring, fault early warning, and automatic generation of environmental protection records, reducing manual intervention.

Applicable Industries and Processes

Applicable Processes:

CO2 shielded welding TIG welding Electric arc welding Laser welding Plasma cutting Grinding and polishing

Applicable Industries:

Steel structures Construction machinery Automotive parts manufacturing Sheet metal processing Chassis and cabinets Rail transportation Aerospace parts Hardware processing Mold manufacturing Robotic welding workstations
