3000kg Load Capacity Welding Positioner with VFD Speed Control and 220V Voltage for Tank Cylinder Welding

Name: 3000kg Load Capacity Welding Positioner with VFD Speed Control and 220V Voltage for Tank Cylinder Welding
Brand: LEMAR
Price: 500 USD

Buy cheap 3000kg Load Capacity Welding Positioner with VFD Speed Control and 220V Voltage for Tank Cylinder Welding product

Tilt Motor : 3.0kw

MOQ : 1

Turning Table Diameter : 1400mm

Customized : Yes

Brand Name : LEMAR

Max Eccentricity Distance : 200mm

Table Speed : 0.05~0.5rpm

Eccentricity : 100~300mm

Payment Terms : D/A,L/C,D/P,T/T

Place of Origin : WUXI

Function : Fixed Welding Positioner

Certification : CE

Supply Ability : 500 units/month

Packaging Details : 50.00cm * 52.00cm * 50.00cm

Price : 500-1000USD

Voltage : 220V

Model Number : BWJ-300

Welding Tilter Type : Flexible Combination

Contact Now

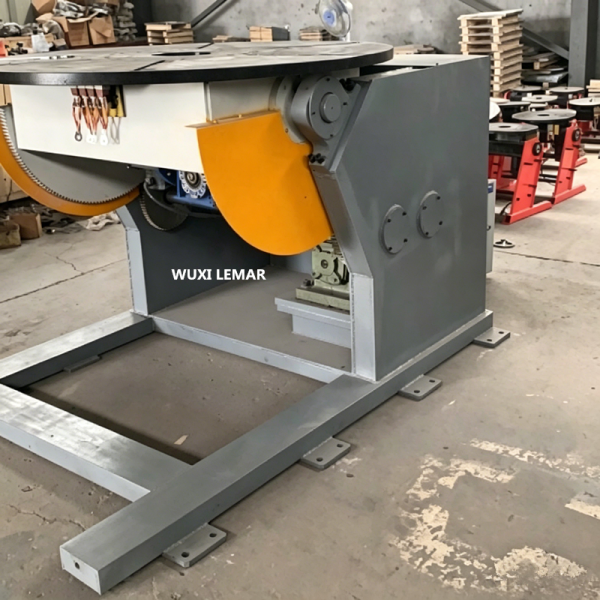

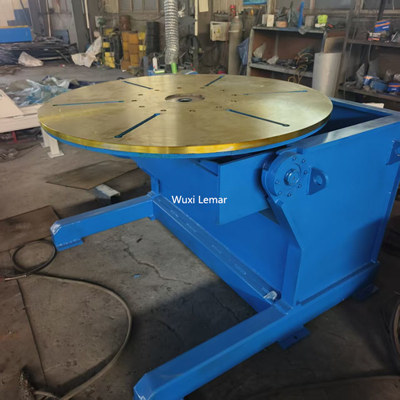

3000kg Welding Turntable Heavy Duty Welding Positioner for Tank Cylinder

Product Introduction

3T welding positioner adopts VFD speed regulation with stable rotation and strong load capacity. It supports 360° rotation and manual tilting, suitable for welding of cylinders, heads and various workpieces. With rigid structure and easy operation, it greatly improves welding efficiency and workmanship.

VFD Speed Control: Stepless frequency conversion speed adjustment realizes smooth rotating and tilting, no stalling or jittering, perfectly matching automatic welding rhythm
Safety Protection: Equipped with emergency stop, overload protection and limit switch, effectively avoiding operation risk and ensuring stable running under full load
Humanized Operation: Integrated control panel with simple buttons and optional remote control, easy parameter setting and one-key start/stop for workers
High Load Structure: Integral welded heavy-duty frame with stress relief treatment, strong rigidity, long-term heavy load working without deformation
Wide Compatibility: Matches welding machine, rotator and manipulator perfectly, suitable for carbon steel, stainless steel and alloy workpiece welding

3000kg Load Capacity Welding Positioner with VFD Speed Control and 220V Voltage for Tank Cylinder Welding

Product Parameters

Model	BWJ-300
Loading weight (kg)	3000
Table Speed (rpm)	0.05~0.5
Flip speed (rpm)	0.5
Flip angle (°)	0-120
Positioner diameter (mm)	Φ1400
Maximum eccentricity (mm)	200
Maximum gravity (mm)	300
Rotate speed adjustment method	Frequency
Rotation motor (kw)	1.5
Flip motor (kw)	3.0

Application Scenarios

Widely used in pressure vessel and boiler manufacturing for circular seam and longitudinal seam welding
Suitable for tank, cylinder and end head processing in petrochemical and natural gas industry
Applied to steel structure and mechanical equipment workpiece rotary welding and assembly
Perfect for new energy equipment, wind power parts and pipeline welding projects
Matches well with welding manipulators and automatic welders for automated production lines

After-sales Service

Professional online technical support provides 24-hour timely consultation and problem solving
Complete one-year warranty period for core components with free maintenance within warranty
Supply original spare parts at factory cost price for long-term equipment operation guarantee
Provide operation installation guidance, remote debugging and technical training for operators
Long-term follow-up service to ensure stable and efficient running of welding equipment

Frequently Asked Questions

What is the load capacity of your welding positioner?

We have complete models ranging from 0.5T to 120T, and customized load capacity is available as well.

Does the equipment support variable frequency speed regulation?

Yes, all standard models adopt VFD stepless speed regulation with stable rotating performance.

Can you customize the equipment according to workpiece requirements?

Customization is supported, including table size, tilt angle, anti-drift device and control mode.

How long is the warranty period and what does it include?

We offer 18 months warranty, with free repair and core parts replacement under normal use.

Do you provide installation guidance and technical support?

Yes, we provide remote installation guidance, operation training and lifelong online after-sales support.
