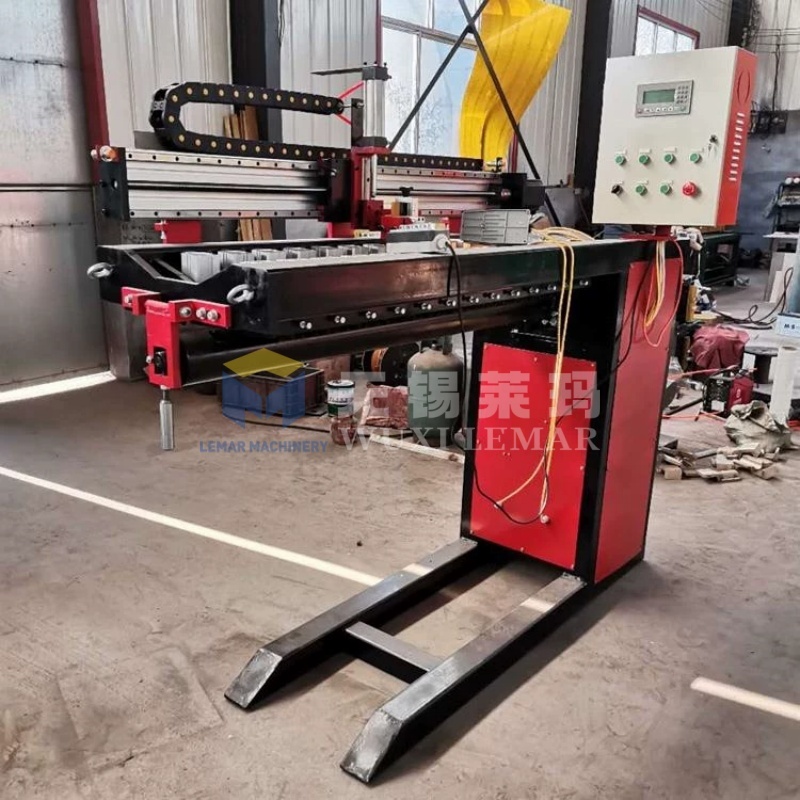

1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding

Name: 1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding
Brand: LEMAR
Price: 500 USD

Buy cheap 1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding product

Current : 10-1000A

Transport Package : Wooden

MOQ : 1

Delivery Time : 10-20 work days

Rated Duty Cycle : 50-100%

Payment Terms : T/T,D/P,D/A,L/C

Welding Metal : Stainless Steel, Iron, Aluminum, Brass

Model Number : Zfh1500

Welding Diameter 100-750mm : 100-750mm

Price : 500-1000USD

Welding Thickness : 0.5-3mm/0.8-6mm

Certification : CE

Welding Mode : TIG MIG Mag Saw Welding Machine

Supply Ability : 500 units/month

Electric Current : DC

Brand Name : LEMAR

Packaging Details : 150.00cm * 80.00cm * 120.00cm

Workpiece Type : Cylinder, Pipe, Tank, Sheet Metal

Place of Origin : WUXI

Contact Now

1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding

Product Overview

This 1500mm Longitudinal Seam Welding Machine is designed for butt-joint welding of cylindrical shells and flat plates, widely used for stainless steel tank, pressure vessel and metal shell production.

Adopts stable pneumatic clamping structure, copper forming backing block realizes single-side welding and double-side forming, greatly improves weld quality for stainless steel workpieces.
Servo-driven torch carriage delivers stepless adjustable welding speed, PLC touch screen saves multiple groups of welding parameters for repeated mass production.
X/Z axis torch fine-tuning mechanism ensures accurate seam alignment. Reserved signal interface supports linkage with external welding power source.
Suitable for carbon steel, stainless steel and other metal materials, it is core Tank Longitudinal Welder for metal fabrication workshops.

1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding

Main Features

Max effective welding length reaches 1500mm, fits cylinder shell and flat-plate butt joint processing.
Pneumatic clamping structure provides even pressure, prevents workpiece shifting during welding process.
Copper backing block with forming groove achieves single-side welding double-side forming for neat weld bead.
PLC touch screen control, stores multiple sets welding parameters for repeat production.
Servo-driven torch carriage, stepless adjustable welding speed, stable running performance.
X/Z-axis torch fine-tuning structure for precise seam alignment.
Reserved signal interface for connecting external welding power source to realize automatic linkage.

Technical Parameters

Technical Item	Parameter Data
Product Model	1500mm Longitudinal Seam Welding Machine
Max Effective Welding Length	1500 mm
Applicable Workpiece Thickness	0.5-6mm (depends on welding power source)
Clamping Mode	Pneumatic clamping
Welding Forming	Single-side welding double-side forming
Carriage Driving	Servo motor drive
Welding Speed	0.2-3 m/min stepless adjustable
Control System	PLC + Touch Screen
Torch Adjustment	X / Z axis manual fine-tuning
Working Power Supply	380V 50/60Hz (customizable)
Total Weight	About 1400 KG
Certificate	CE / ISO available
Warranty	1 year whole machine warranty

Optional Upgrade Options

Back-side gas protection device for high-standard stainless steel welding.
Wireless handheld controller for convenient on-site parameter adjustment.
Water-cooled torch assembly for long-time heavy-duty continuous production.
Reinforced clamping module for thicker workpiece processing.
Torch swing module for wide-gap butt welding condition.
Customized travel stroke and clamping range for special-size shells.
OEM painting color and marking service for brand-oriented customers.

1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding

Application

Longitudinal seam welding for stainless steel tanks, pressure vessels and cylindrical shells.
Flat-plate butt welding for sheet metal, carbon steel and alloy steel workpieces.
Applied in food equipment, chemical industry, environmental protection equipment manufacturing.
Can cooperate with welding positioner and turning rolls to complete full workpiece welding workflow.

1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding

Frequently Asked Questions

Q1: What workpiece can this 1500mm longitudinal seam welder process?

A: It is mainly for longitudinal butt welding of cylindrical shells and flat plates, suitable for stainless steel, carbon-steel sheet.

Q2: Does it come with welding power source?

A: The welding power source is optional. We can supply matching power source according to your requirement.

Q3: Can we change welding stroke for special workpieces?

A: Yes, customized stroke, clamping range and special-voltage cabinet are supported.

Q4: How about after-sales service?

A: One-year whole-machine warranty. We provide operation video, manual, and remote video-call guidance.

Q5: Can it link with other welding equipment?

A: Yes, reserved signal interface supports linkage with external welding power source.
